Automotive LED Manufacturing and Quality Control

Our 5,000 m² Guangzhou facility handles SMT assembly, manual inspection and final aging tests in-house.

  • 5,000 m² Facility
  • 8 Dedicated Production Lines
  • 100% Full-Inspection Protocol

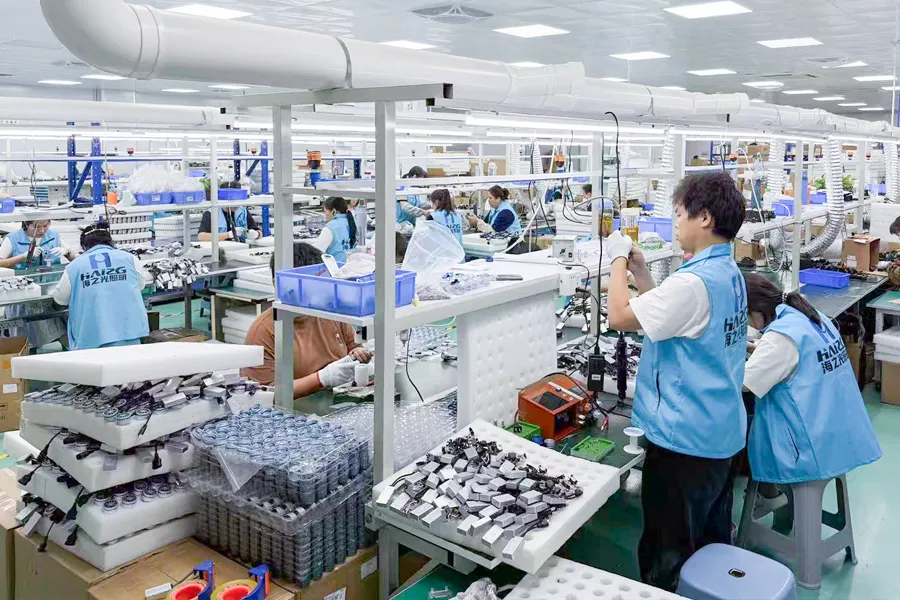

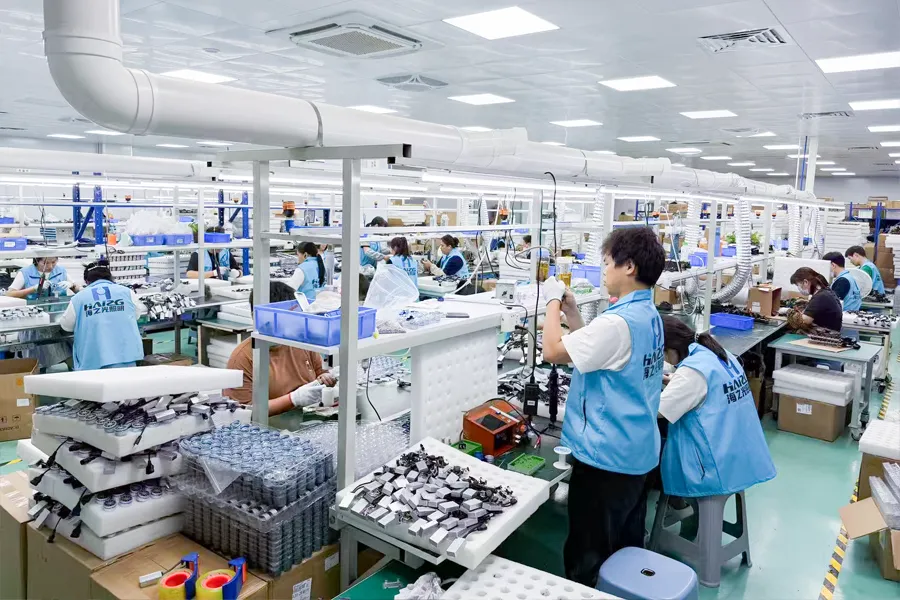

HAIZG staff assembling automotive LED lamps on the production line

Automotive LED Manufacturing in Guangzhou

HAIZG has manufactured automotive LED lighting in Guangzhou since 2017. The factory handles product development, SMT assembly and full-load aging tests for wholesale, OEM and ODM orders.

5,000 m²Manufacturing Facility
200,000+Sets Monthly Capacity
8Advanced Production Lines
8+Years Industry Experience

Our 6 Step Standardized Production Process

Our facility is strategically organized into specialized manufacturing stages. This highly controlled environment guarantees efficiency and consistent quality from raw materials to the finished product.

HAIZG technician assembling LED components at a production workstation

Raw Material Inspection

Rigorous IQC testing for LED chips, drivers, and aviation aluminum components.

Applying solder paste to LED boards at the HAIZG production workstation

Solder Paste Printing

Controlled solder paste application prepares LED boards for component assembly and soldering.

Assembly of LED boards and heat sink components at HAIZG

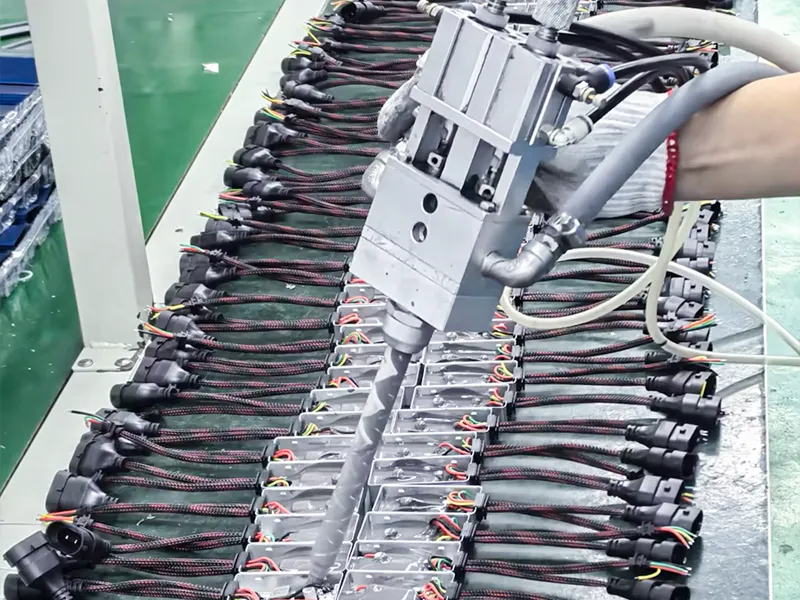

Heat Sink & Housing Assembly

Thick copper substrates and heat sinks draw heat away from the LED boards.

Close-up of hand soldering an LED board at HAIZG

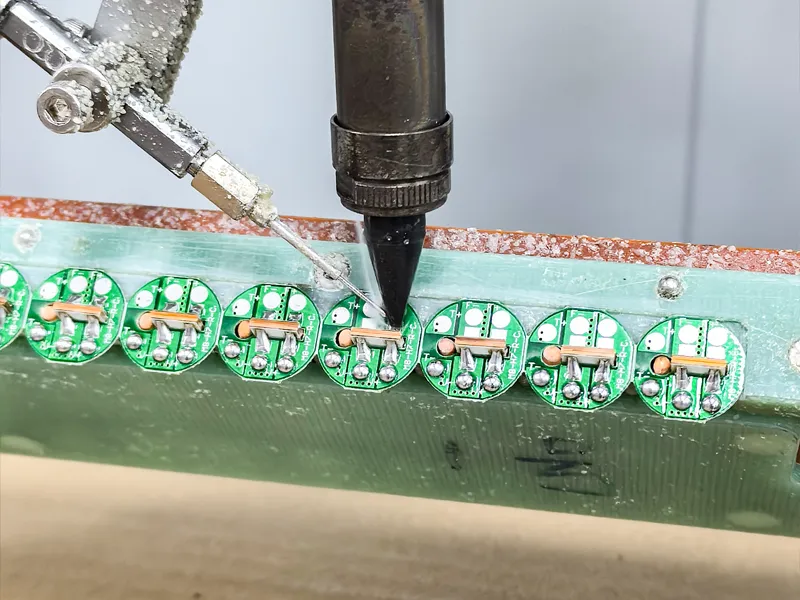

Soldering & Wiring

Expert automated and manual soldering to ensure secure and durable electrical connections.

HAIZG technician measuring LED light color and optical parameters

Optical Parameter Testing

Measuring light output and color characteristics with optical instruments.

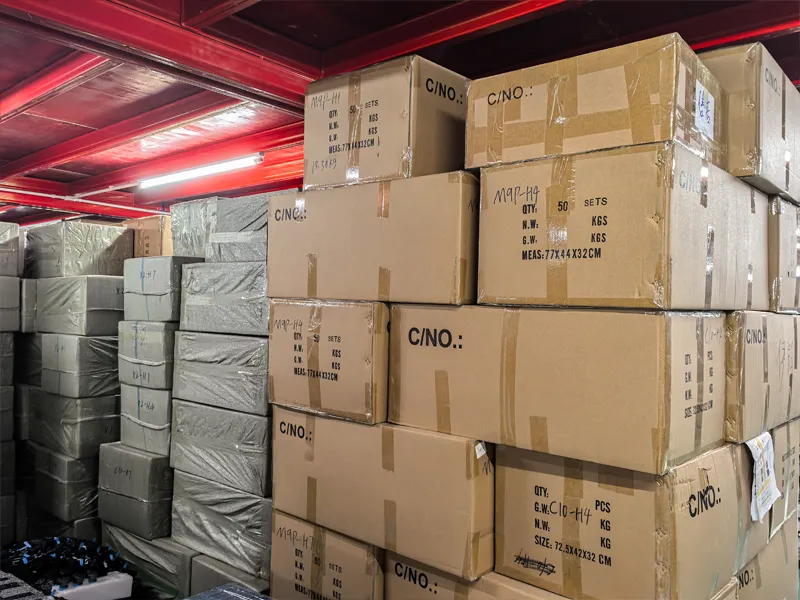

Packing automotive LED headlights into HAIZG branded presentation boxes

Packaging & Warehousing

Careful boxing, labeling, and palletizing, ready for safe global shipping.

100 Percent Full Inspection Protocol

Each unit goes through five quality checks before shipment.

Every Unit Is Verified, Not Sampled

Instead of relying on batch sampling, HAIZG validates every product through a fixed inspection chain. That discipline is what keeps defect rates controlled across high-volume production.

  • Full inspection at every critical handoff
  • Electrical, optical, and thermal checks combined
  • Traceable batch coding before final packaging

All passed units receive a traceable batch production date code before proceeding to the final QC packaging phase.

HAIZG pcb conveyor equipment 01

SMT Patch Testing

Electrical continuity verification for all in-house manufactured control boards.

HAIZG automated soldering closeup 02

Sub-Assembly Welding Inspection

Semi-finished electronic performance testing to eliminate cold joints and short circuits.

HAIZG led lamp inspection 03

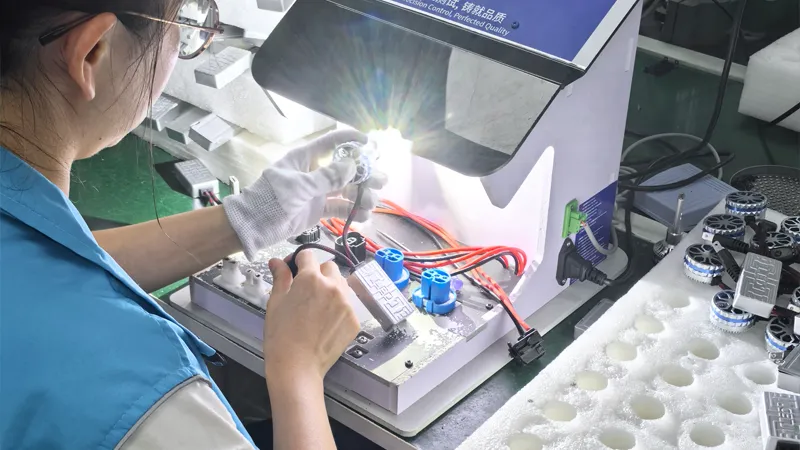

Light Source Integrity Check

Initial illumination testing to verify LED chip activation and alignment.

HAIZG product dimension measurement 04

Housing & Optical Calibration

Post-assembly verification of actual wattage, thermal output, and precise light cutoff lines.

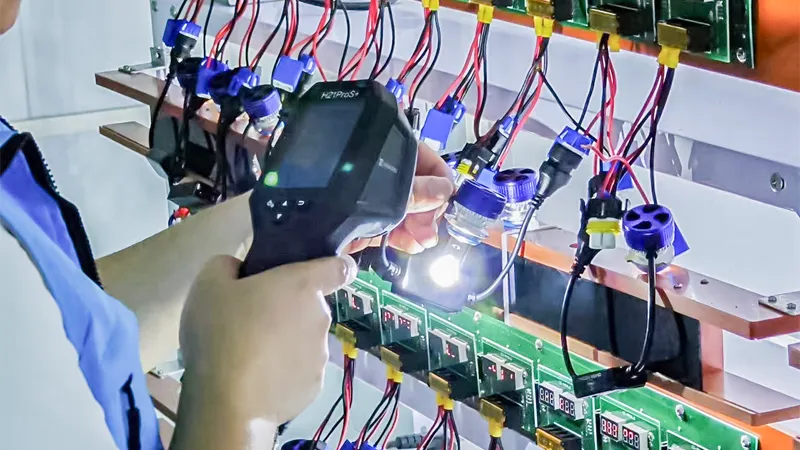

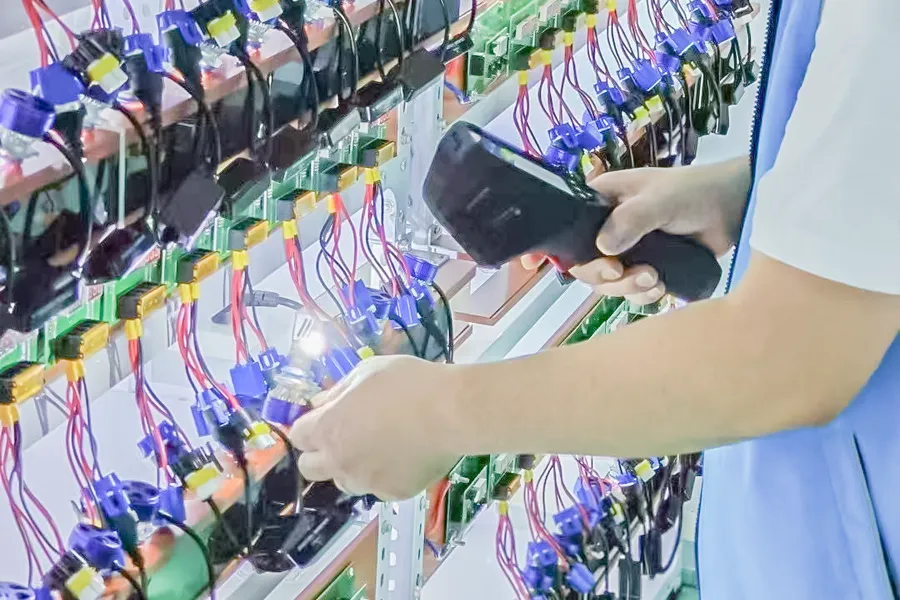

Automotive LED lamps on aging test racks in the HAIZG testing room 05

Full-Load Aging Test

Intensive high-voltage constant current aging on specialized racks to expose any latent component weaknesses.

Laboratory-Grade Testing Infrastructure

From in-house SMT boards to integrating spheres, thermal chambers, and semi-automated soldering, these core assets let us verify electronic precision, optical output, and thermal resilience before each production batch moves forward.

Applying solder paste to LED boards at the HAIZG production workstation

PCB Solder Paste Printing

Solder paste is applied to LED boards as part of the in-house electronics assembly process.

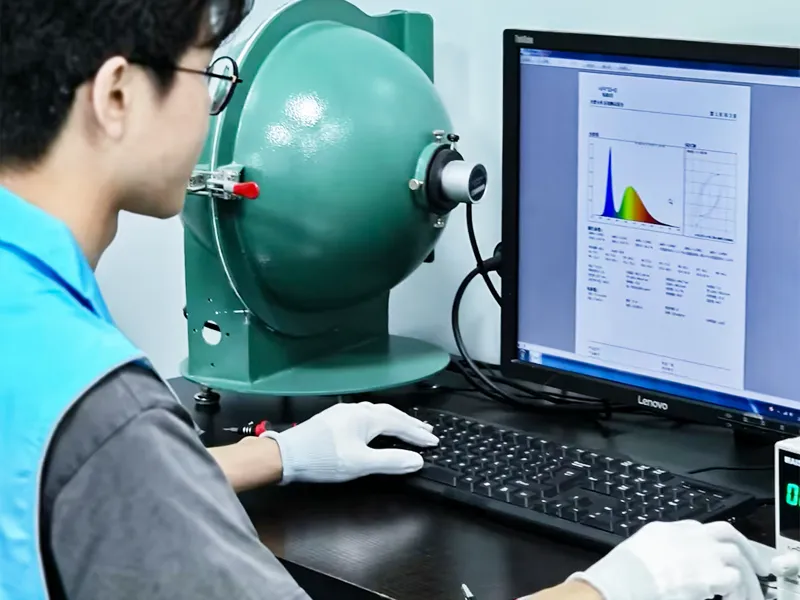

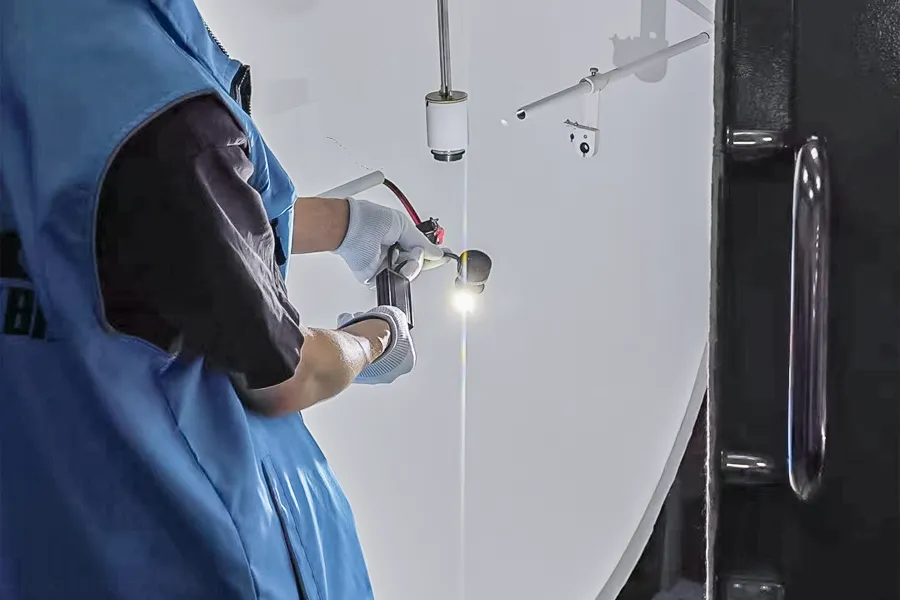

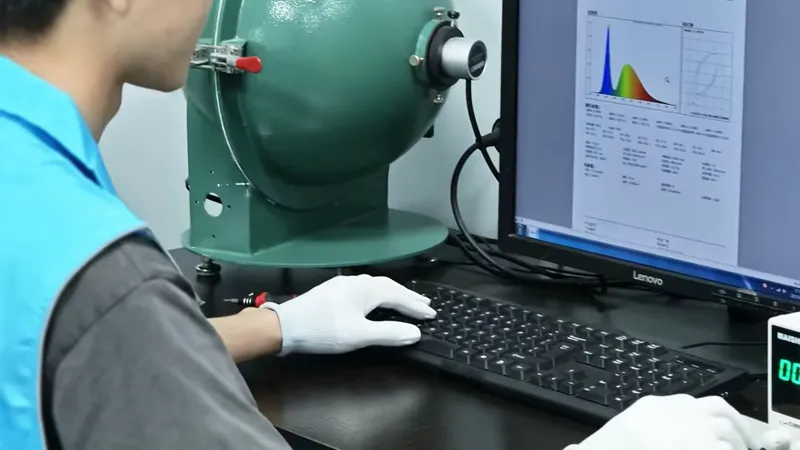

HAIZG technician operating an integrating sphere in the optical laboratory

Integrating Sphere Testing

Utilized for rigorous pre-stocking spectral checks on raw chips, and final verification of lumen output and color temperature on finished goods.

Constant-temperature drying oven in the HAIZG testing laboratory

Constant-Temperature Testing

A constant-temperature drying oven exposes products to controlled heat during testing.

HAIZG operator working at an automated soldering station

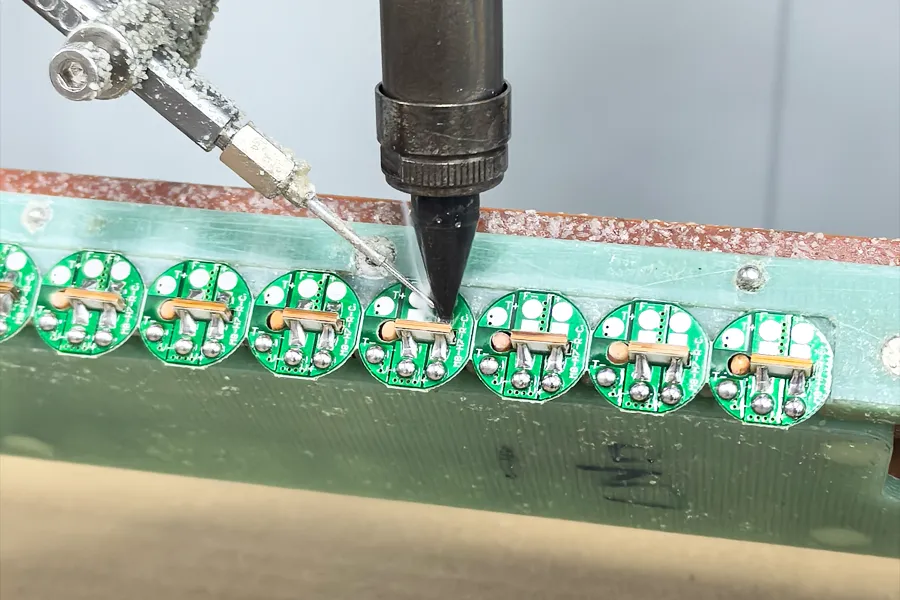

Semi-Automated Soldering

Replaces manual inconsistencies with mechanical precision, ensuring robust, vibration-resistant connections for all internal wiring.

Laboratory Grade Spectral Accuracy

We don’t just chase raw brightness. Using our precision integrating sphere spectrometers, we engineer our lighting to deliver true color fidelity, reducing driver fatigue and enhancing night-time safety.

Absolute 6500K Daylight Accuracy

Our flagship models stabilize precisely at color coordinates x=0.312, y=0.328 (aligned with ANSI standards). With a color deviation (SDCM) of 0.0 and color purity maintained between 15.2% – 17.2%, we guarantee a pure, non-glaring daylight white beam without blue tinting.

x=0.312y=0.328SDCM 0.0

Industrial-Grade Color Rendering (CRI R1-R15)

Unlike standard LEDs that merely illuminate, our lights reveal true environments. Our stable low-beam R14 index (Nature & Greenery) reaches up to 87.4, while the R15 index (Skin Tone) hits 76.9. This significantly increases high-risk hazard recognition for pedestrians and roadside obstacles.

R14 87.4R15 76.9

High-Efficiency Energy Conversion

The Luminous Efficacy of Radiation (LER TM-30) reaches a highly efficient 332.9, proving massive lumen output with extremely low energy consumption.

LER TM-30 332.9

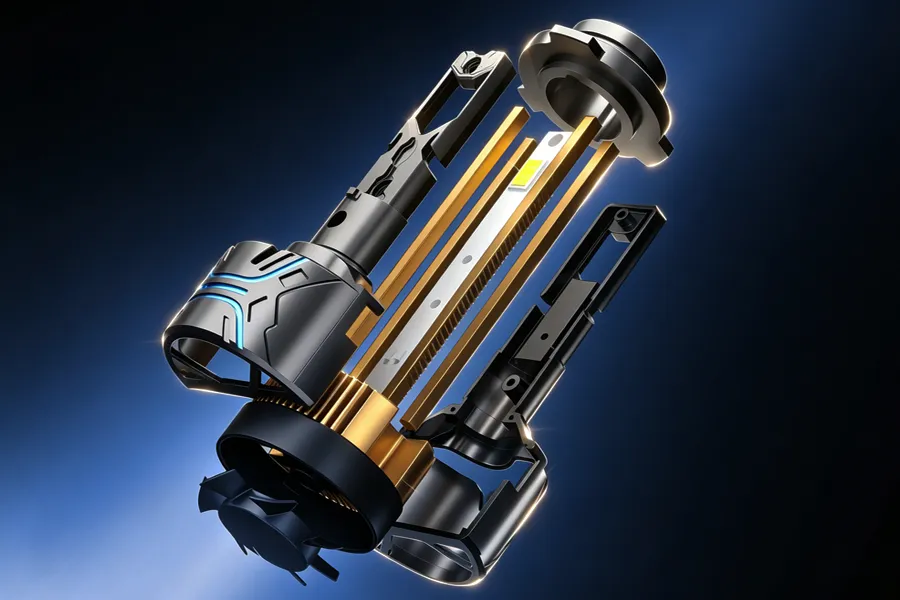

Premium Materials for Uncompromised Durability

From housing alloys to chip sourcing and thermal architecture, the durability of every HAIZG product starts with materials chosen for long-term road use rather than short-term cost savings.

HAIZG spotlight housing assembly

Aerospace-Grade Aluminum Alloy

Our housings utilize premium composite aluminum, delivering an incredibly high strength-to-weight ratio. Non-magnetic and non-sparking, it offers exceptional corrosion and salt-spray resistance while acting as a highly efficient intrinsic heat sink.

Top-Tier San’an LED Chips & Dual Circuits

Selected models use San’an LED chips and dual-circuit drivers. Ask which models have CAN bus compatibility and EMC test data for your vehicle.

Heavy-Duty Thermal Matrices

High-power models are fortified with 1 to 8 graphene copper tubes, thickened pure copper substrates, liquid-cooling fans, and intelligent dual-temperature control circuits that dynamically prevent chip burnout.

Quality Management and Product Compliance Documents

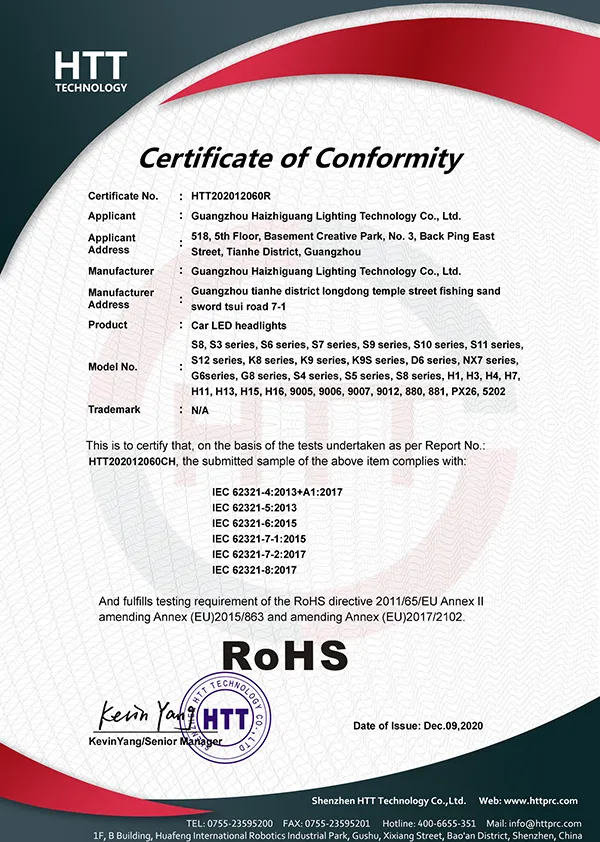

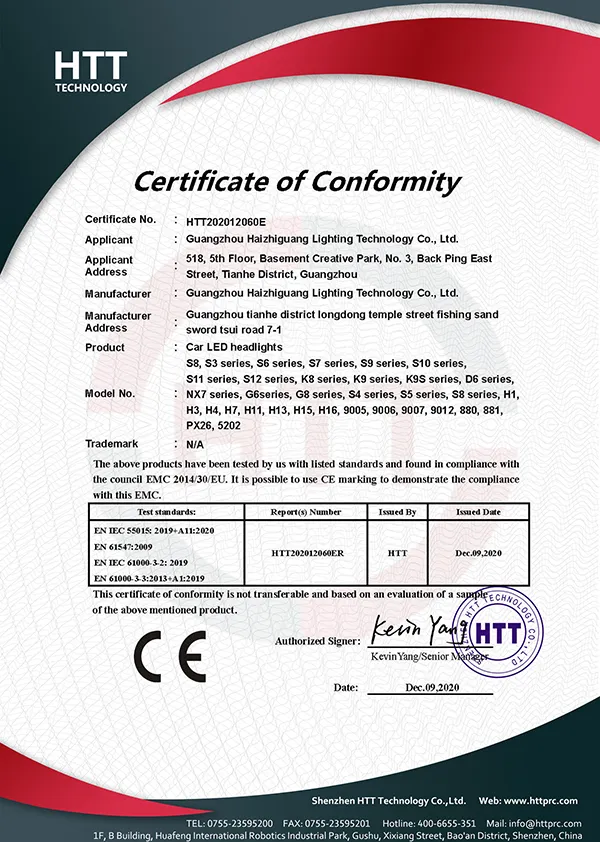

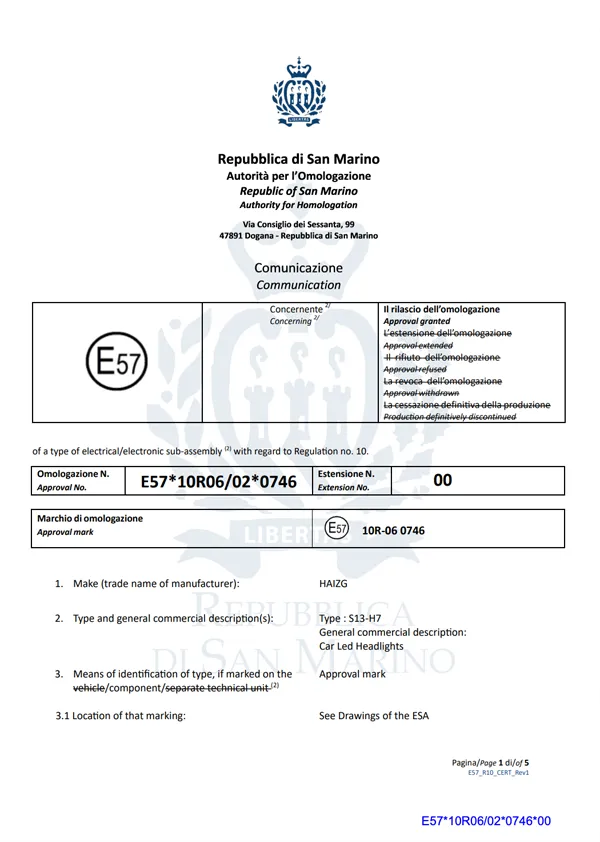

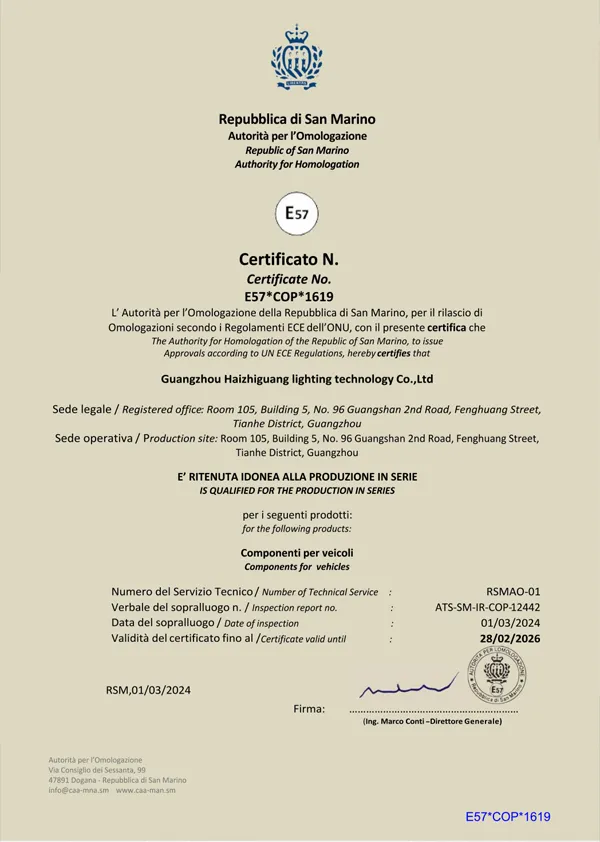

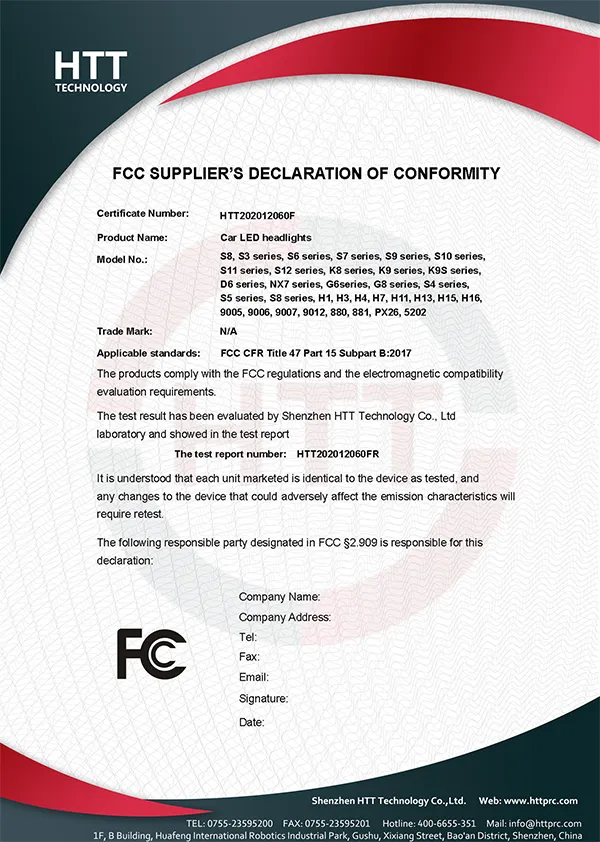

View the ISO 9001 quality management system certificate and the published CE, RoHS and E-mark documents. Ask for the product documents that apply to your headlight model and destination market.
